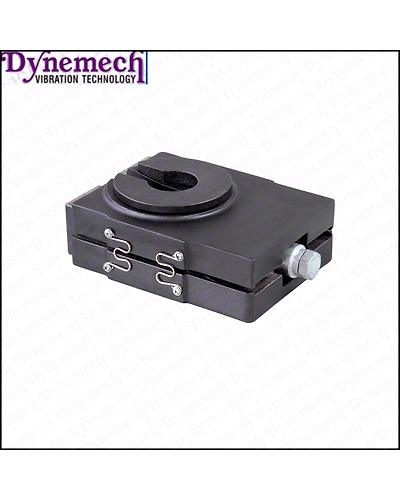

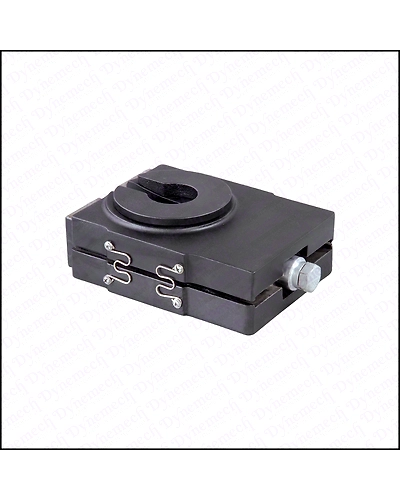

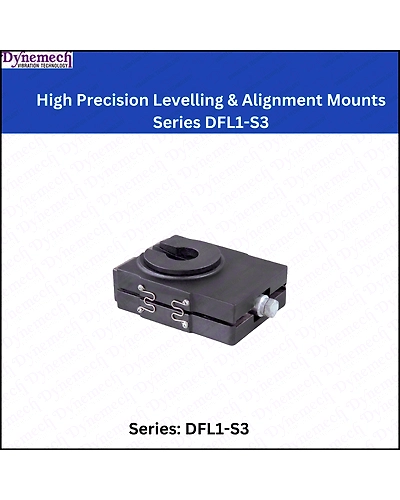

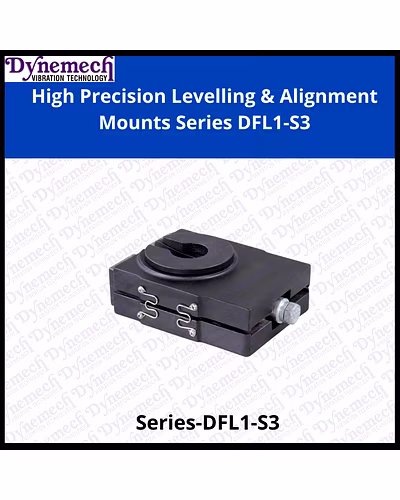

High Precision Levelling & Alignment Mounts Series DFL1-S3
6200.00
/ NOS (Numbers)Inclusive of all taxes
You Save: 300. Discount 4.62%
| Brand | DYNEMECH |
| ITC-HSN: | 8487900 |
| Availability | In Stock |
| Minimum Order Quantity: | 5 |
| Accept Small Orders | Yes |
| Fulfilment Capacity (Per Month): | 100 |
| Country Of Origin: | India |
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:188(mm) Width:140(mm) Height:68.5(mm) Load Capacity: 12200 Kg
Max. Torque Value (N.m):603 Adjustment Range(mm):6
4 Nos Weight ( Kg.): 45 kg
Material: Cast Iron
Colour: Green/Dark Grey
4 Nos of Box Size: 13"x8"x7
4 Nos of Boxes: 2
Delivery Time: 10-12 Days
-
Additional Information
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:188(mm) Width:140(mm) Height:68.5(mm) Load Capacity: 12200 Kg
Max. Torque Value (N.m):603 Adjustment Range(mm):6
4 Nos Weight ( Kg.): 45 kg
Material: Cast Iron
Colour: Green/Dark Grey
4 Nos of Box Size: 13"x8"x7
4 Nos of Boxes: 2
Delivery Time: 10-12 Days
Price-6200
-
