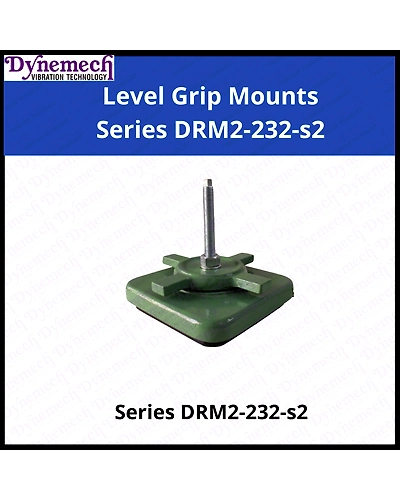

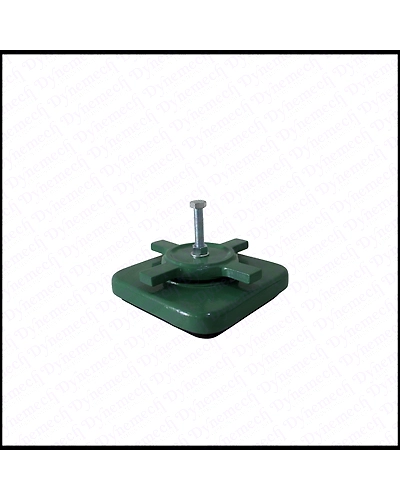

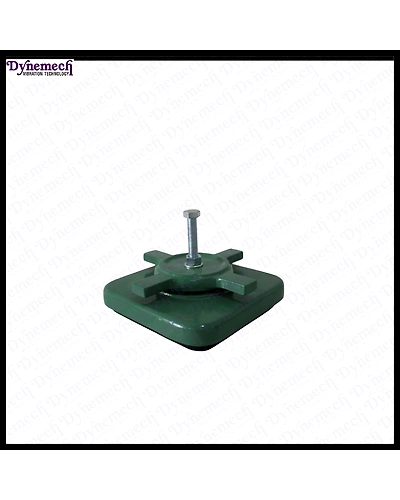

Dynemech Level Grip Mounts Series DRM2-232-S2
4400.00
/ NOS (Numbers)Inclusive of all taxes
| Brand | DYNEMECH |
| ITC-HSN: | 84879000 |
| Availability | Out of Stock |
| Minimum Order Quantity: | 4 |
| Accept Small Orders | Yes |
| Country Of Origin: | India |
Dynemech Level Grip Mounts Series DRM2-232-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.
Length:150(mm) To 232(mm)
Width:150(mm) To 232(mm)
Height:77(mm) To 77(mm)
Bolt Size:M16x2.0x100mm To M20x2.5x100mm
Levelling Adjustment: 20(mm) To 20 (mm)
Load Capacity: 1000 Kg/pc To 3300 Kg/pc
Natural Frequency (Hz):-8Hz To 8Hz
Coeff. of Friction: 0.8 To 0.8
https://vibrationmountsindia.com/
-
Additional Information
Dynemech Level Grip Mounts Series DRM2-232-S2 Mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.
Length:150(mm) To 232(mm) Width:150(mm) To 232(mm) Height:77(mm) To 77(mm) Bolt Size:M16x2.0x100mm To M20x2.5x100mm
Levelling Adjustment: 20(mm) To 20 (mm)
Load Capacity: 1000 Kg/pc To 3300 Kg/pc
Natural Frequency (Hz):-8Hz To 8Hz
Coeff. of Friction: 0.8 To 0.8
Working Temp Range :16 to 90
Weight ( Kg.): 5 Kgs To 10 KgS
Material: Cast Iron, Rubber
Colour: Green And Black
Price-4400
https://vibrationmountsindia.com/
-
